Construction surveying decides whether an underground garage stays dry, because every protection this kind of structure has comes down to elevations. A ramp sloping below street level is an invitation to surface water. Whether that invitation gets accepted depends on a handful of measured heights around the entrance. Get those right and water passes by. Get them wrong by a few inches and the garage becomes the lowest point on the block. Survey crews carry that responsibility from excavation through final inspection.

Establishing the Elevation of the Garage Entrance

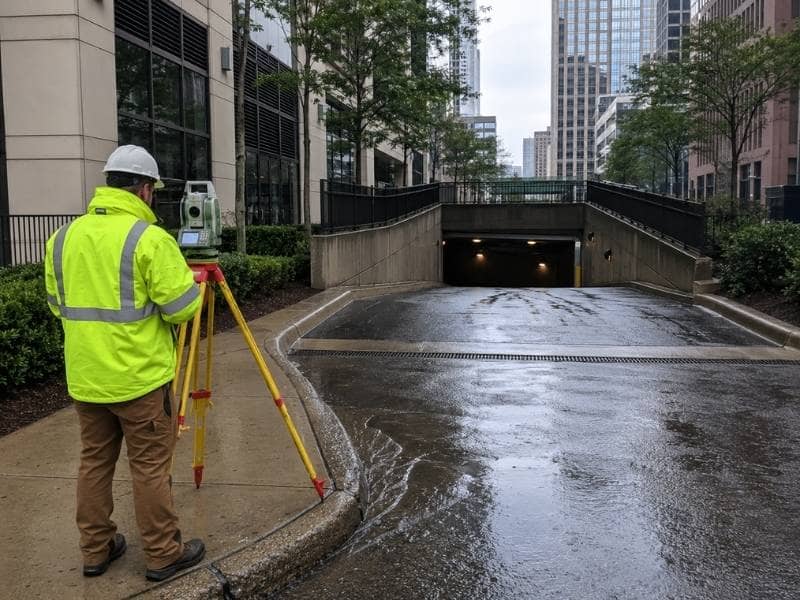

The ramp crest is the elevation that matters most. That’s the high point between the street and the descending ramp. Water can only enter the garage from the surface if it rises above that crest. Survey crews measure it precisely and compare it against the street, the gutter line and the sidewalk in front.

Surrounding grades tell the rest of the story. A crest set six inches above the sidewalk means very little if the sidewalk itself sits in a low spot that collects runoff from two directions. Crews shoot elevations along the frontage in both directions so the design team can see the whole surface, not just the point at the door.

Design and reality drift apart during construction. Paving contractors adjust. Sidewalks get replaced. Crews re-measure the crest after each of those changes, since a resurfaced street can raise the gutter line and shrink the protection everyone assumed was there.

Mapping Surface Water Routes Near the Proposed Ramp

Water reaches a ramp from more places than the street. Adjacent plazas, neighboring driveways, roof drainage and parking areas all shed water somewhere. A topographic survey around the entrance traces those paths and shows which ones point at the ramp.

The upstream area drives the volume. A ramp that catches drainage from a small landing faces a different problem than one at the bottom of a long sloping drive. Crews map enough ground uphill to let the engineer estimate what arrives during a storm. That estimate sizes the trench drains and the pumps.

Barriers and diversions come out of the same data. Raised curbs, speed bumps at the crest, flood gates and small berms all work by changing the surface. Their required heights come straight from measured elevations rather than from a standard detail.

Setting Excavation and Structural Control Below Ground

Layout below grade brings its own problems. Once excavation starts, the crew loses sight of the control points around the site. Surveyors solve that by transferring position and elevation down into the hole. They use plumbing methods, laser instruments or total station setups from points that remain visible.

Depth compounds error. A small angular mistake at the surface becomes a larger position error thirty feet down. Crews take redundant measurements and check them against each other before anyone pours. Wall lines, column locations, footing positions and slab elevations all depend on that check.

Excavation control also protects the neighbors. Digging next to an existing building means holding the excavation inside its permitted limits. Crews stake those limits and verify them as the hole deepens.

Staking Ramp Slopes and Internal Drainage Features

The ramp has to hit two targets at once. It needs enough slope to reach the lower level within the available length. It also needs to stay gentle enough for vehicles to use without scraping. Crews stake the ramp profile at close intervals, including the transitions at the top and bottom where the grade changes.

Interior drainage follows the same discipline. Trench drains, floor drains, sumps and pump pits all sit at designed elevations, and each one needs to fall toward it. Surveyors stake those locations and check the finished slab afterward. A floor that looks flat can still hold water in three places.

Low points deserve extra attention. The lowest spot in a garage is where water ends up, so the pump pit belongs there and nowhere else. Confirming that with measurements beats trusting the drawing.

Certifying Critical Elevations Before Occupancy

Final surveys document what actually got built. Crews measure the finished ramp crest, the entrance threshold, the finished floor at each level, and the elevations of drainage structures and flood barriers. Those numbers go into a record that can be checked later.

Permitting and insurance often depend on that record. Reviewers want proof that protective elevations match the approved design. Measured values, tied to a stated vertical datum, give them something verifiable instead of a contractor’s word.

The as-built also serves the building’s operators. Years later, someone will ask how high the water can rise before it reaches the ramp. A documented set of elevations answers that question in minutes.

Frequently Asked Questions

Which garage elevations are most important on a flood-sensitive property?

The ramp crest, the entrance threshold and the surrounding street and sidewalk grades. Those four control whether surface water can reach the ramp at all. After that, the finished floor at each level and the elevations of drains, sumps and flood barriers matter most.

Can construction surveying confirm that a garage entrance matches the approved design?

Yes. Crews measure the built crest, threshold and approach grades, then compare them against the design elevations. The report shows the difference at each point. That comparison is what tells the design team whether the protection built into the plan actually exists on site.

When should an underground parking structure receive an as-built survey?

At the end of construction, before occupancy, and often at stages along the way. Measuring the slab and drainage elevations while access is easy catches problems early. A final as-built then records the protective elevations for permitting, insurance and future maintenance.
