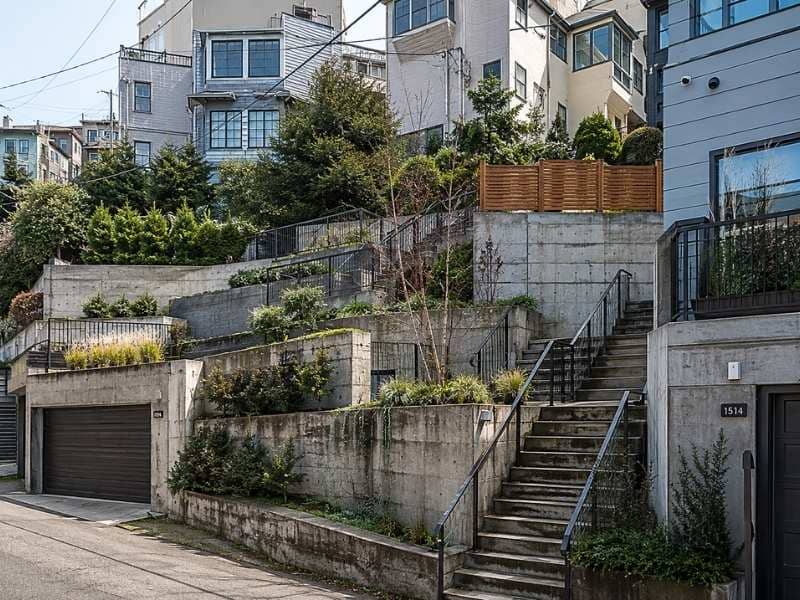

A topographic survey on stepped city land has to show far more than gentle contour lines. When a lot climbs in short bursts, with walls, stairs and terraces stacked close together, a plan drawn from wide contours hides the very changes a designer needs to see. Crews working these sites measure each rise and drop where it happens, not where a formula guesses it should be. That extra detail keeps the design honest and the drainage working once the building goes up.

Capturing Abrupt Elevation Changes Between Adjacent Properties

Sharp height differences between two neighboring lots call for close, direct measurement. A retaining wall might lift the ground four feet in a single step, and a run of stairs can drop a walkway well below the sidewalk next door. Contours spaced two feet apart skip right over changes like these, so they miss the detail that shapes a design.

To catch that detail, the crew shoots individual points at the top and bottom of every wall, along each stair tread and where a slope meets a flat surface. Curbs, driveway aprons and the exact height of each building entrance get the same close attention. Each reading marks a spot where the ground behaves differently than the land around it.

These points give the design team a true picture of how the land steps down. An architect can then set floor heights that match the grade instead of fighting it, and a drainage plan built on real numbers stands a better chance of moving water the right way.

Mapping the Breaklines That Control Surface Shape

Breaklines tell the mapping software where the ground suddenly changes direction. Without them, a computer draws smooth surfaces across places that are actually sharp, like the crest of a slope or the edge of a wall. The result looks tidy but lies about the real shape of the site.

So crews trace these lines by hand in the field, following the top and toe of each slope, the edge of every wall and the bottom of a drainage channel. The crown of a paved drive gets a line too, since water sheds off both sides of it. Grade transitions, where a steep bank flattens into a yard, mark another spot the crew records.

When the surface model reads these breaklines, it bends correctly and shows the terrain the way it really sits. A designer studying that model can trust the slopes and low points on the screen. Skip the breaklines, and the same model turns steep drops into gentle ramps that were never there.

Connecting Finished Floors to Exterior Grades

The height of a finished floor only makes sense when it ties back to the ground outside. A front threshold that sits six inches above the walkway changes how a ramp or step gets designed. A basement door near a low spot can invite water during a heavy storm.

Crews measure these connection points with care, including window wells, loading docks and any place where inside meets outside. Each reading links the building to the grade that surrounds it, and it tells the design team how far the floor sits above or below the yard, the alley and the street.

These numbers matter for both looks and function. An architect uses them to line up entrances with the sidewalk, while a drainage designer checks whether water runs away from the openings or pools against them. On a stepped lot, where a few inches decide which way water flows, the tie between floor and grade carries real weight.

Recording Retaining Structures as Three-Dimensional Features

A retaining wall is a three-dimensional object, and a survey treats it that way. Crews record where the face sits, how tall the wall stands and the elevation along the top, or coping. They also note the grade on both sides, since the ground is almost always higher behind the wall than in front of it.

The footing usually stays buried, so its exact depth remains an educated estimate unless it gets exposed. For a single wall, the field notes often capture:

• The face line and any lean or bulge
• Top-of-wall and bottom-of-wall elevations
• Ground height on both the high and low sides
• Cracks, leaning sections or bowing that signal distress

That last point matters to engineers deciding whether a wall can stay or needs rebuilding. A wall that leans or shows wide cracks tells a different story than one standing straight and sound. The survey puts that evidence on the record, where the design team can weigh it before they build against the wall.

Delivering Terrain Data at the Detail Level Designers Need

Detail costs time, so the survey scope gets matched to what the project actually needs. A tight urban lot with walls and stairs usually calls for a one-foot contour interval, dense point spacing and clear feature codes. Those codes label every wall, curb and slope so the drawing reads clearly later.

The crew and the design team agree on this scope early. Collecting too little means a return trip and a delay, while collecting too much runs up the bill for data nobody uses. A short talk up front settles how much detail the job really calls for.

Deliverables also shift with the job. Some designers want a full surface model they can drop into their own software, while others ask for cross-sections that slice through the site to show the climb. On stepped ground, those sections often reveal problems a flat plan would hide.

Frequently Asked Questions

Are standard contour lines enough for a steep urban parcel?

Rarely. Contours drawn at a normal interval skip over the walls, steps and short slopes that shape a steep lot. On this kind of ground, spot elevations and breaklines carry the detail a designer actually needs, and the contours become a rough background rather than the main source of truth.

Should both sides of a retaining wall be surveyed?

Yes, whenever access allows. The ground behind a wall usually sits higher than the ground in front, and design work depends on knowing both. Measuring only one side leaves a gap that forces the engineer to guess at the wall’s full height and the grade change it holds back.

How are inaccessible grade changes documented?

When a crew can’t safely reach a spot, they measure it from a distance with reflectorless instruments or record it as an estimate. The survey then flags that area as approximate. Honest labeling keeps the design team from trusting a number that was never fully confirmed.
