A topographic survey on a hillside collects far more data than the same survey on flat ground. That’s the whole point. Steep sites hide their problems in short vertical distances. A slope can lose ten feet of elevation across twenty feet of ground, then flatten out for no obvious reason. Rock ledges, old walls and small benches break up the surface in ways that contour lines at wide intervals will smooth right over. Planning the survey properly is what keeps those features from disappearing before the designer ever sees them.

Mapping Contours Closely Enough to Define the Hillside

The contour interval sets the resolution of the whole survey. On gentle ground, two-foot contours describe the terrain well enough for grading design. On a steep hillside those same contours crowd together and hide everything between them. Steep sites usually call for a one-foot interval, and sometimes tighter than that near critical areas.

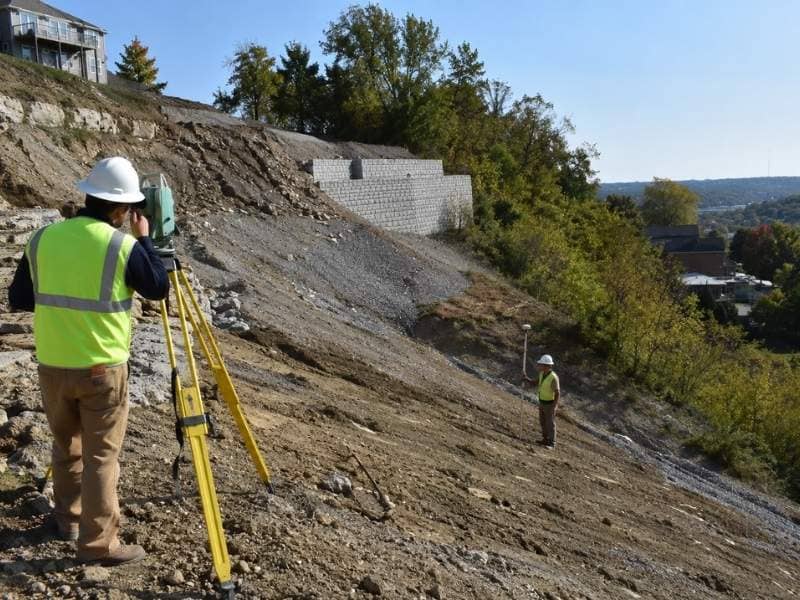

Point density has to match the interval. A crew can’t draw reliable one-foot contours from shots taken thirty feet apart on a slope. Field crews walk the hillside and take readings along every change in grade. They pick up the crest, the toe, and each break in the slope face. Some of that work happens on foot with a rod, since terrain and tree cover can defeat other methods.

Scope should also cover more than the building pad. Water and soil movement on a hillside start uphill and end downhill. Surveying only the flat part gives the engineer no way to see what arrives from above or what a cut will affect below.

Recording Retaining Walls, Rock Exposures, and Slope Breaks

Physical features on a slope carry as much weight as the contours themselves. Crews locate existing retaining walls and measure the top and bottom of each one. They record exposed rock, including the height of the face and how far it runs. They also mark abrupt slope breaks, old benches and terrace edges from earlier grading.

Condition notes travel with the measurements. A leaning wall, a bulging wall or a wall with no visible drainage tells a design team something a coordinate can’t. Crews photograph what they find and tie the photos to mapped locations. Later, when a geotechnical engineer reviews the site, those notes point them toward the spots worth examining.

Existing walls also raise a question that has to be answered early. Does the wall sit on this property, on the neighbor’s, or across the line? The survey locates it against the boundary so nobody designs around a structure they don’t control.

Separating Buildable Ground From High-Gradient Areas

The surface model lets designers calculate slope across the whole property. Software takes the surveyed points and reports gradients for every part of the site. Those results get grouped into ranges, often something like under fifteen percent, fifteen to thirty, and above thirty. Local hillside rules usually define the ranges that matter.

The resulting map changes how a project gets laid out. Gentle areas invite buildings, driveways and parking. Steep areas cost far more to develop and often carry extra permit requirements. Seeing the split on paper early lets an architect place the structure where construction stays reasonable.

Averages can lie on hillsides. A parcel that averages eighteen percent may contain a short cliff and a flat bench. Reporting slope by area, rather than as one number for the whole site, keeps that detail visible.

Supporting Grading and Hillside Stabilization Design

Engineers build cut and fill designs directly on the surveyed surface. They test where a pad can sit, how deep the cut runs, and how much material leaves the site. On a slope those quantities move fast. Lowering a pad two feet can add hundreds of cubic yards of excavation.

Drainage design leans on the same data. Water on a hillside gathers speed, so engineers need to know where it collects and where it leaves. The survey shows existing swales, seeps and the low points along each bench. Those locations drive where interceptor drains, swales and outlets go.

Stabilization design also starts from measured ground. A retaining wall’s height depends on the difference between existing grade and proposed grade at each station along it. Erosion controls get placed based on slope length and steepness. Every one of those choices traces back to survey points.

Verifying Final Slopes After Excavation

Hillside work rarely finishes exactly as drawn. Rock shows up where the plans assume soil. Soil sloughs during construction. Contractors adjust in the field. A post-excavation survey measures what actually got built and compares it against the approved design.

The comparison matters for approval as much as for engineering. Many jurisdictions limit the steepness of finished slopes and the total area disturbed. Measured contours prove whether the site met those limits. If a slope came in steeper than allowed, finding out during construction leaves room to fix it.

The updated surface also becomes the record for whoever comes next. Future owners, maintenance crews and designers all benefit from knowing the real shape of the hillside instead of the shape somebody planned five years ago.

Frequently Asked Questions

Does a steep-site topographic survey include retaining walls and visible rock?

It should. Walls and rock exposures control how a hillside behaves and how much a project costs. Crews locate them, measure their heights and note their condition. Those features usually matter more to a hillside design than the contours running between them.

Why does hillside terrain increase the amount of survey data needed?

Elevation changes fast on a slope, so widely spaced points miss real features. A short rock face or a small bench can disappear between two shots taken thirty feet apart. Tighter contour intervals need tighter point spacing, which means more field time and more data.

Should the property be surveyed again after major excavation?

Yes, in most cases. Finished slopes often differ from the design once crews hit rock or adjust to field conditions. A post-excavation survey documents the real grades, supports permit compliance and gives future work an accurate starting surface.
