Benchmark recovery is the quiet first step behind almost any renovation on sloped ground. Before a designer can set a new floor height or plan how water leaves the site, someone has to find a trusted elevation to build from. On older hillside blocks, that trusted point is often a benchmark set decades ago, and finding it is not always simple. The mark may be gone, moved or tied to a number system nobody uses anymore.

Why Old Plans May Reference Benchmarks That No Longer Exist

Old drawings often point to benchmarks that vanished years ago. Roads get rebuilt, curbs get replaced, and buildings that once held a brass marker come down, and the reference disappears with them. A number that felt permanent when the plan was drawn can be long gone by the time anyone needs it.

Some plans also lean on an assumed datum, meaning the surveyor picked a starting value like 100.00 with no tie to any official system. Every elevation on that sheet relates to the others, yet none of them connect to the wider world. When the original crew and their notes are gone, the number floats free with nothing to anchor it.

A renovation team that trusts such a plan without checking risks building off a ghost. The floor might end up too high, too low or out of step with the flood rules that apply to the block. A short recovery effort at the start avoids a costly correction later.

Tracing a Benchmark Description Back to Its Source

Finding a lost benchmark starts with the paper trail. A good description names the object the mark sits on, gives a rough location and lists its elevation. Those three clues together often point a crew to within a few feet of the original spot.

Surveyors read these notes closely, then compare them against agency records, old construction drawings and nearby survey filings. Sometimes a county or state database still holds the original sheet, complete with a sketch. Each source adds a piece, and together they narrow the search.

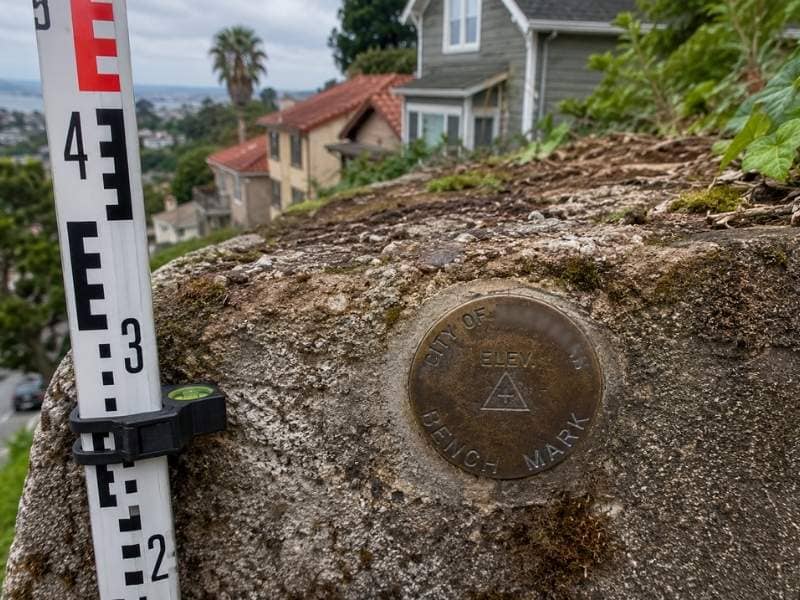

The goal is to match the written clue to a real object on the ground. That object might be a chiseled square on a foundation, a bolt in a bridge or a disk set in concrete. Confirming it in the field is what turns a promising record into a usable reference.

Testing Whether an Existing Elevation Reference Is Still Reliable

A found benchmark still has to earn trust before anyone uses it. The crew runs a level line from it to other known points and back, then checks whether the numbers close within a tight limit. A clean loop suggests the mark has held its position.

They also compare the benchmark against published control when a stable one sits nearby. Two independent sources that agree give real confidence, while a single reading proves very little on its own. Redundant observations catch problems that one measurement would hide.

If the readings disagree, the benchmark may have settled, shifted or simply been misidentified in the first place. A mark on a wall that cracked and moved can look fine yet read wrong. Testing separates a dependable reference from one that only looks the part.

Reconciling Assumed Elevations with Modern Vertical Datums

An elevation can be perfectly consistent and still be wrong for the job. Say a set of old plans uses an assumed datum where the yard reads 100.00. Every value on that sheet agrees with the next, so the work looks sound at a glance.

The trouble shows up when that internal system meets the outside world. Flood maps, city utilities and permit reviews all speak in a shared vertical datum, and an assumed 100.00 means nothing to them. A number that is right within the old plan can be off by feet against the official reference.

Surveyors bridge this gap by tying the old work to a modern datum, usually NAVD 88. That step lets the renovation speak the same language as the agencies reviewing it. Skip it, and a finished floor that looks fine on paper can sit at the wrong height for flood rules.

Establishing Replacement Benchmarks for Design and Construction

When the old mark is gone or unreliable, the crew sets a fresh one. A good replacement sits on something stable, like a deep foundation or a driven rod, well clear of areas that will get dug up during the work. Choosing that spot with care keeps the mark alive through the whole project.

The surveyor then writes a clear description, sketches the location and records the elevation tied to the proper datum. That paperwork lets anyone find the mark again months later. It also proves which datum the number belongs to, so no one mixes systems by accident.

That information goes to the architect and the builder so everyone measures from the same point. On a hillside job, where small height errors travel downhill fast, one shared and stable benchmark keeps the whole project honest from foundation to final grade.
